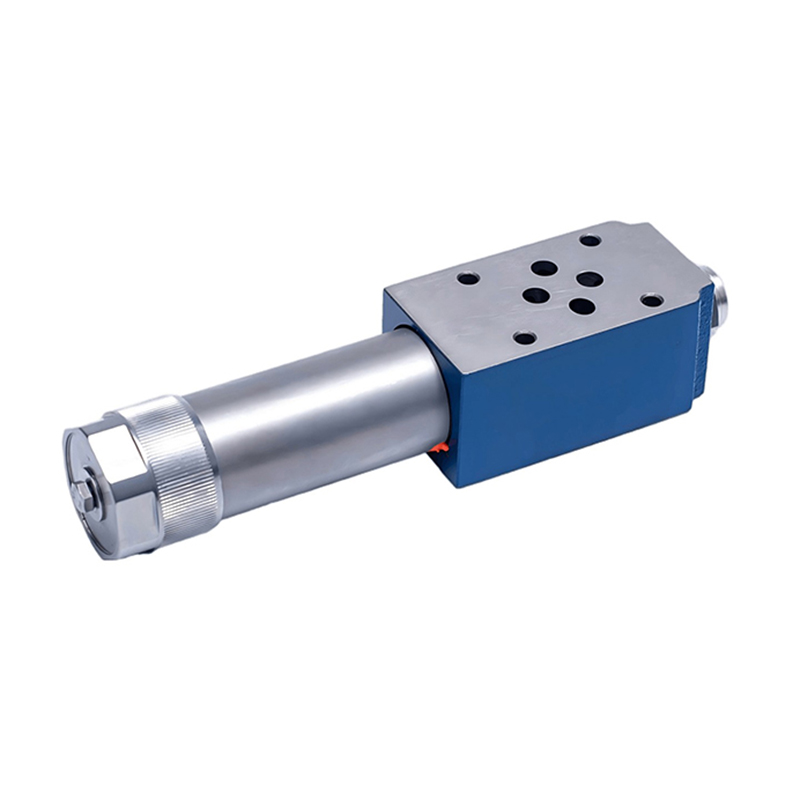

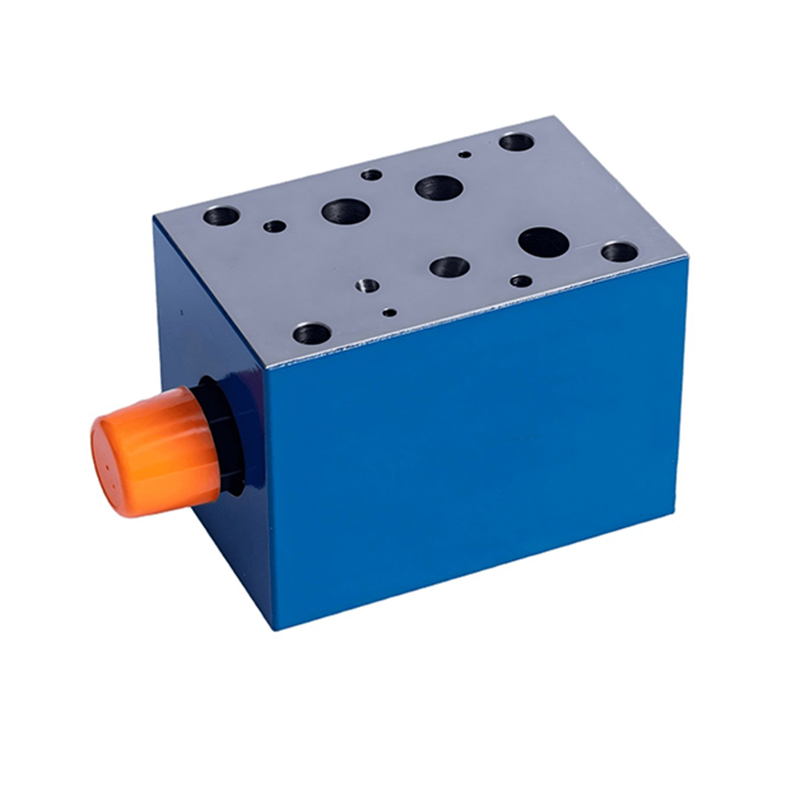

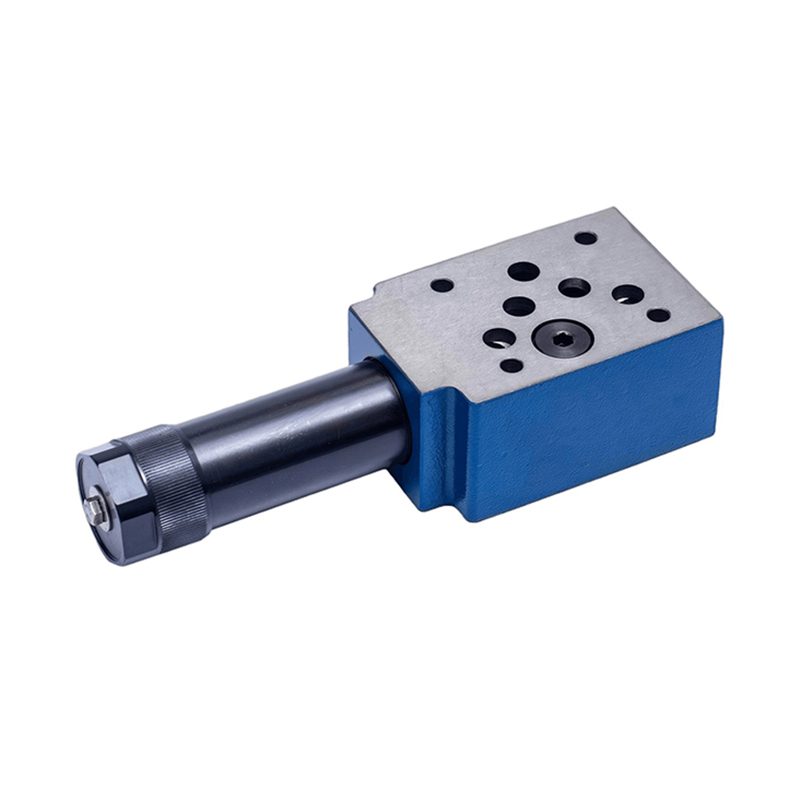

| ZDR-type superimposed direct-acting pressure reducing valve | |||
| ZDR-type superimposed direct-acting pressure reducing valve ZDR6...3XJ |
specification | 6 | |
| Max working pressure(Mpa) | 21 | ||
| Max working Flow(L/min) | 30 | ||
| pressure adjustment(Mpa) | 2.5/7.5/15/21 | ||
| ZDR-type superimposed direct-acting pressure reducing valve ZDR6...4XJ |
specification | 6 | |
| Max working pressure(Mpa) | 31.5 | ||
| Max working Flow(L/min) | 40 | ||
| pressure adjustment(Mpa) | 2.5/7.5/15/21 | ||
| ZDR-type superimposed direct-acting pressure reducing valve ZDR10...5XJ |
specification | 10 | |
| Max working pressure(Mpa) | 31.5 | ||
| Max working Flow(L/min) | 80 | ||
| pressure adjustment(Mpa) | 2.5/7.5/15/21 | ||
| ZDR-type superimposed direct-acting pressure reducing valve ZDR16...3XJ |
specification | 16 | |
| Max working pressure(Mpa) | 31.5 | ||
| Max working Flow(L/min) | 80 | ||
| pressure adjustment(Mpa) | 2.5/7.5/15/21 | ||
