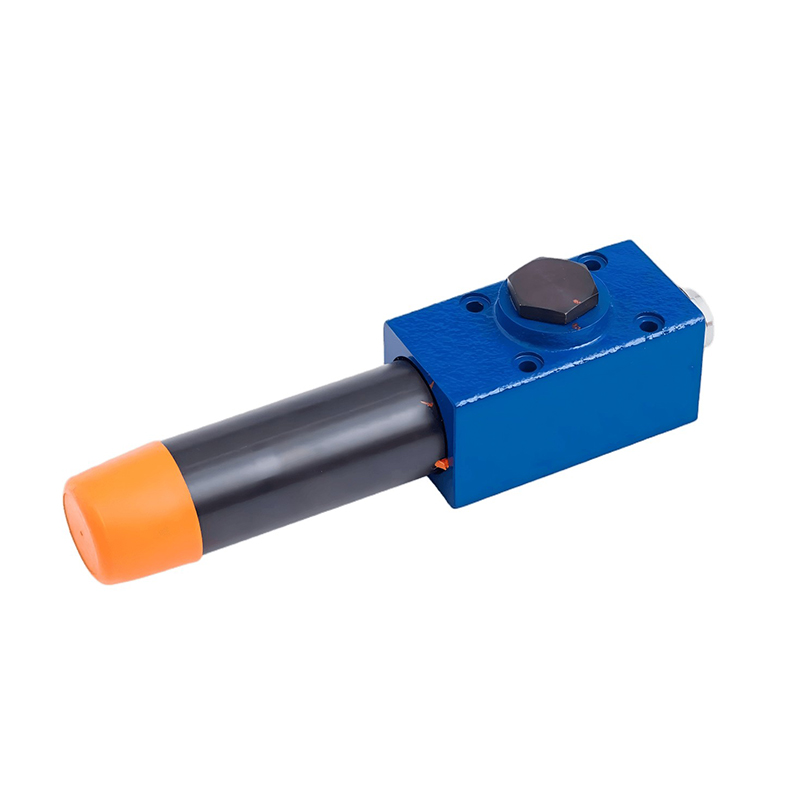

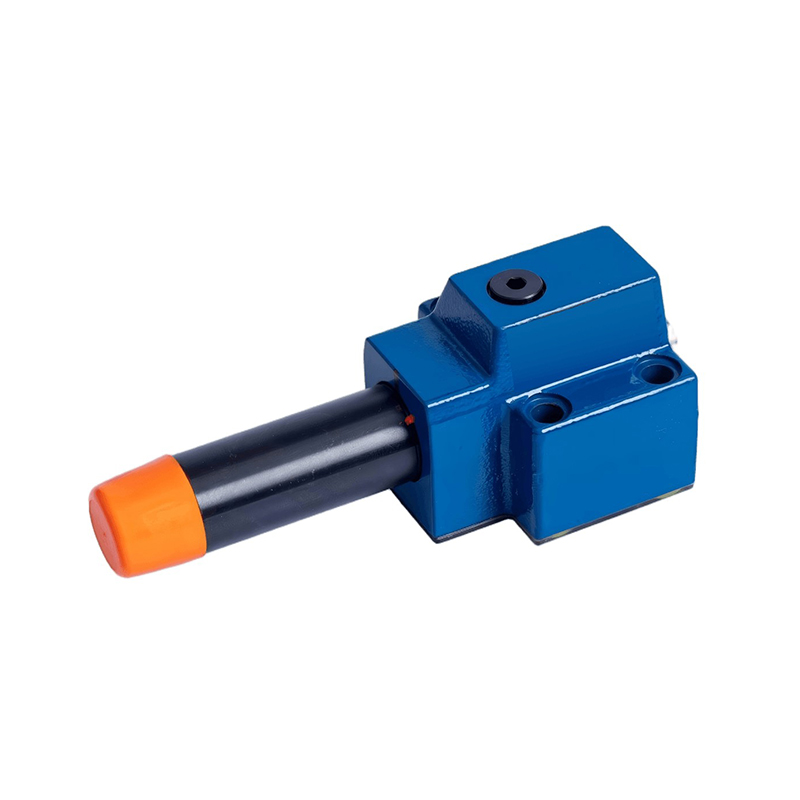

| DR...DP Type Direct-Acting Pressure Reducing Valve | |||
| DR...DP Type Direct-Acting Pressure Reducing Valve DR5DP...1XJ |
specification | 5 | |
| Max working pressure(Mpa) | 31.5 | ||
| Max working Flow(L/min) | 15 | ||
| pressure adjustment(Mpa) | 2.5/7.5/15/21/31.5 | ||
| DR...DP Type Direct-Acting Pressure Reducing Valve DR6DP...5XJ |
specification | 6 | |
| Max working pressure(Mpa) | 31.5 | ||
| Max working Flow(L/min) | 60 | ||
| pressure adjustment(Mpa) | 2.5/7.5/15/21/31.5 | ||
| DR...DP Type Direct-Acting Pressure Reducing Valve DR10DP...4XJ |
specification | 10 | |
| Max working pressure(Mpa) | 21 | ||
| Max working Flow(L/min) | 80 | ||
| pressure adjustment(Mpa) | 2.5/7.5/15/21 | ||
