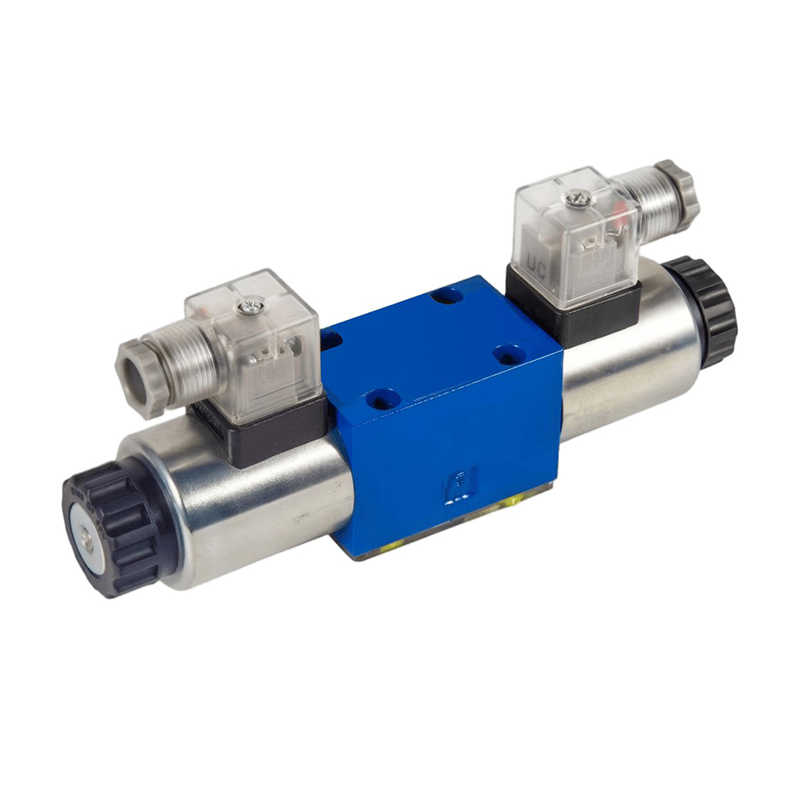

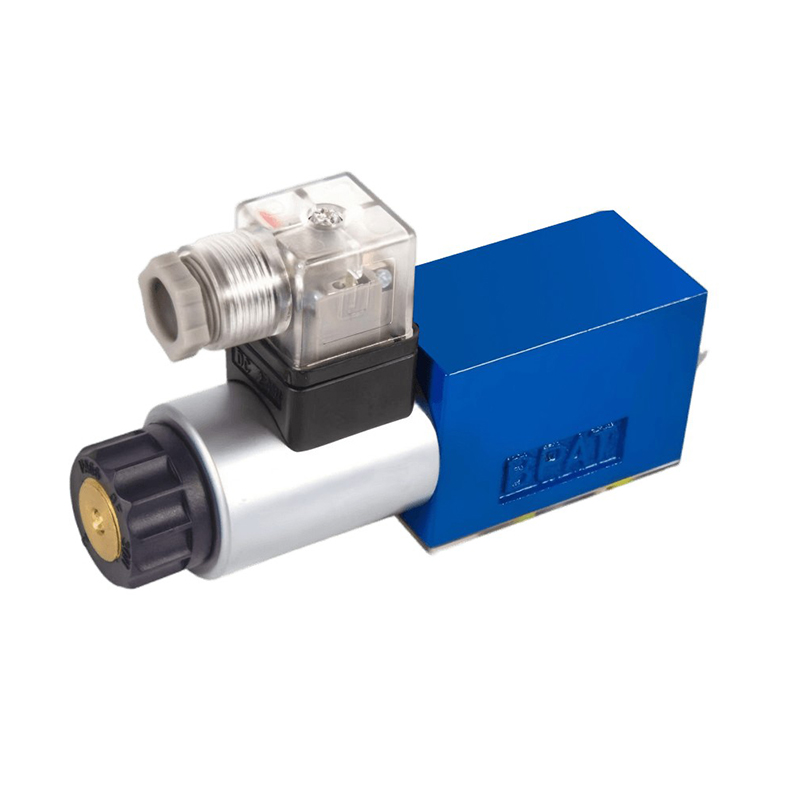

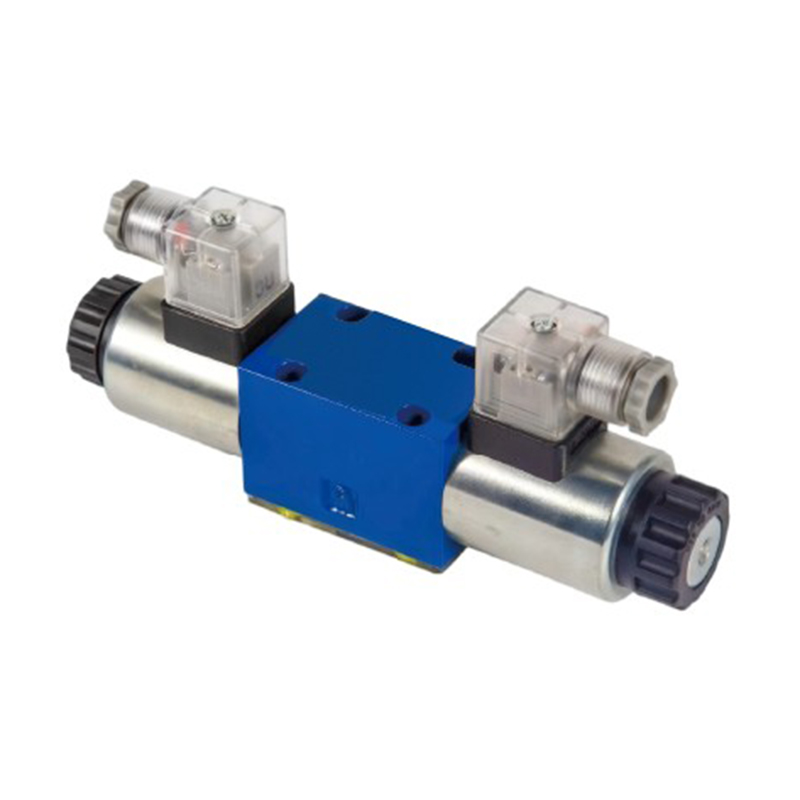

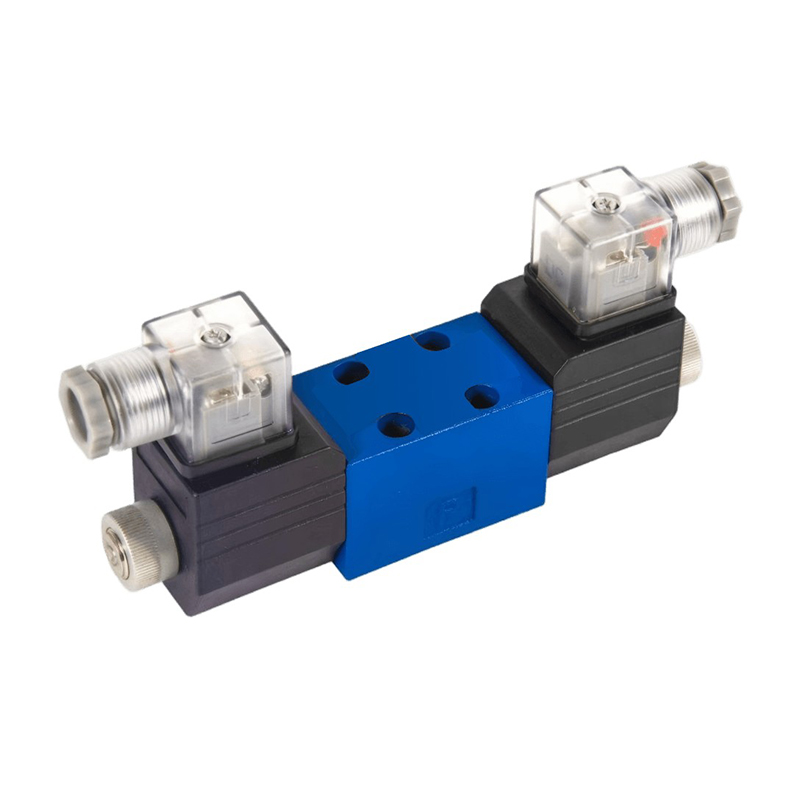

| WE-type electromagnetic directional control valve | |||
| WE-type electromagnetic directional control valve- WE4…2XJ |
specification | 4 | |
| Max woeking pressure(Mpa) | A/B/POil port21|TOil port10 | ||
| Max working Flow(L/min) | 30 | ||
| Working voltage | Direct Current（DC）12/24|Communication（AC）220|Self-regulation（SR）110/220 | ||
| WE-type electromagnetic directional control valve- WE5…6XJ |
specification | 5 | |
| Max woeking pressure(Mpa) | A/B/POil port25|TOil port6 | ||
| Max working Flow(L/min) | 14 | ||
| Working voltage | Direct Current（DC）12/24/27|Communication（AC）220|Self-regulation（SR）220 | ||
| WE-type electromagnetic directional control valve- WE6…6XJ |
specification | 6 | |
| Max woeking pressure(Mpa) | A/B/POil port35|TOil port21（DC）/16（AC） | ||
| Max working Flow(L/min) | 80（DC）/60（AC） | ||
| Working voltage | Direct Current（DC）12/24/28|Communication（AC）110/220|Self-regulation（SR）110/220 | ||
| WE-type electromagnetic directional control valve- WE10…3XJ |
specification | 10 | |
| Max woeking pressure(Mpa) | A/B/POil port31.5|TOil port21（DC）/16（AC） | ||
| Max working Flow(L/min) | 120 | ||
| Working voltage | Direct Current（DC）12/24/28|Communication（AC）220|Self-regulation（SR）220 | ||
| WE-type electromagnetic directional control valve- WE10…5XJ |
specification | 10 | |
| Max woeking pressure(Mpa) | A/B/POil port35|TOil port21 | ||
| Max working Flow(L/min) | 150 | ||
| Working voltage | Direct Current（DC）24/28|Communication（AC）220|Self-regulation（SR）220 |
