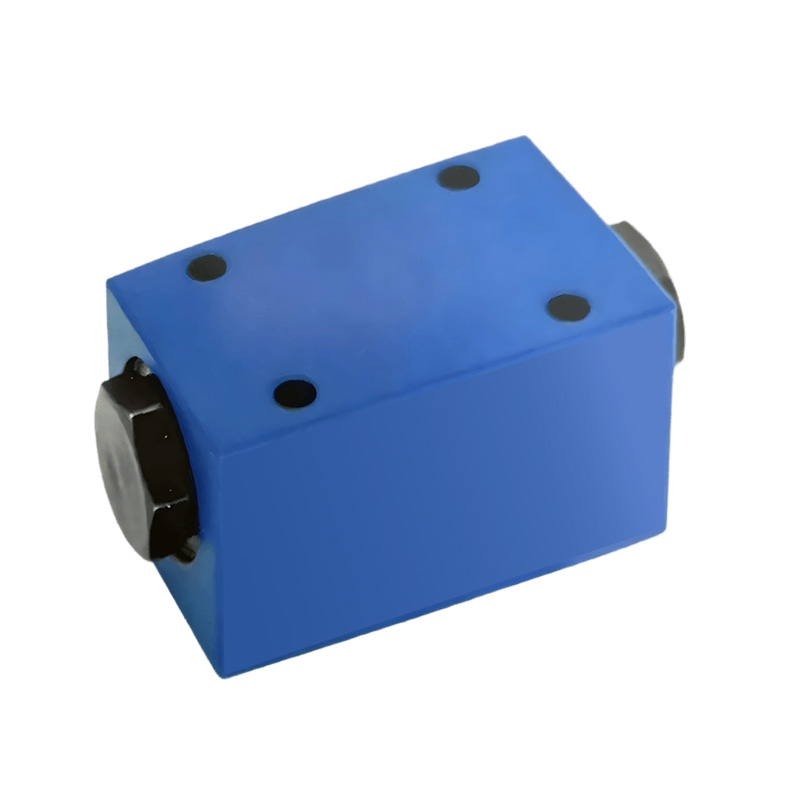

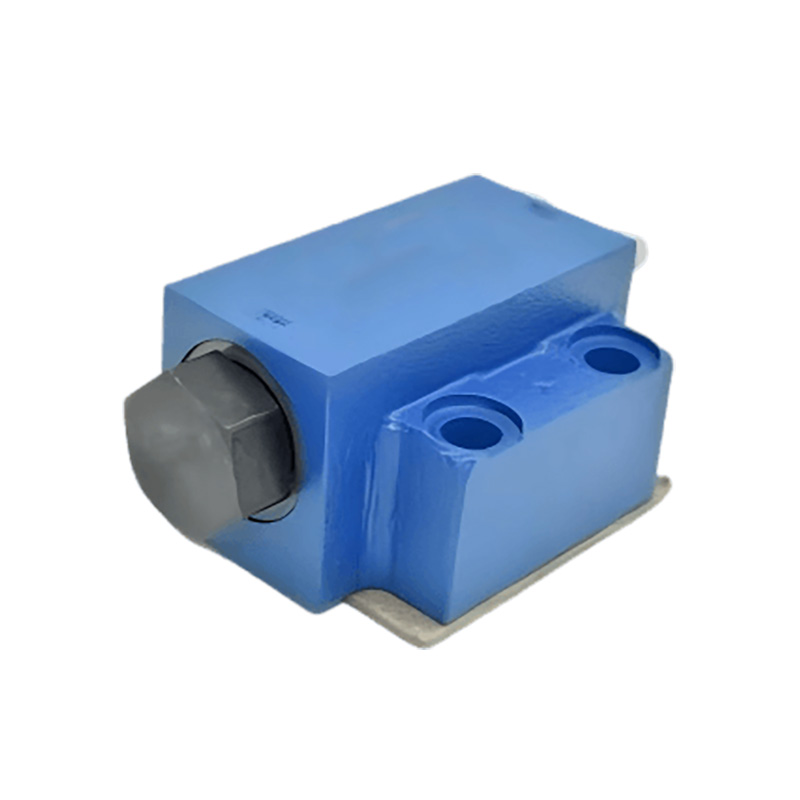

| SV/SL type hydraulic-controlled check valve | |||
| SV/SL type hydraulic-controlled check valve- SV/SL6PB/PA…6XJ |
Specification | 6 | |
| Max woeking pressure(Mpa) | 31.5 | ||
| Max working Flow(L/min) | 60 | ||
| Open pressure(bar) | 1.5/3/7/10 | ||
| SV/SL type hydraulic-controlled check valve- SV/SL…G…4XJ |
Specification | 10/15/20/25/30 | |
| Max woeking pressure(Mpa) | 31.5 | ||
| Max working Flow(L/min) | 550 | ||
| Open pressure(bar) | 10(1.5/3/6/10)|15-20(2.5/5/7.5/10)|25-30(2.5/5/8/10) | ||
| SV/SL type hydraulic-controlled check valve- SV/SL…P…4XJ |
Specification | 10/20/30 | |
| Max woeking pressure(Mpa) | 31.5 | ||
| Max working Flow(L/min) | 550 | ||
| Open pressure(bar) | 10(1.2/3/6/10)|20(2.5/5/7.5/10)|30(2.5/8/11) | ||
